Patterned Carbon Nanotube Arrays
Our carbon nanotube arrays can make excellent electron field emitters.
New self assembly processes have enabled large scale patterning at low cost.
(Click on a single image for a alternative view).
patterned nanotube arrays
Single nanotubes were grown using electron beam lithography.

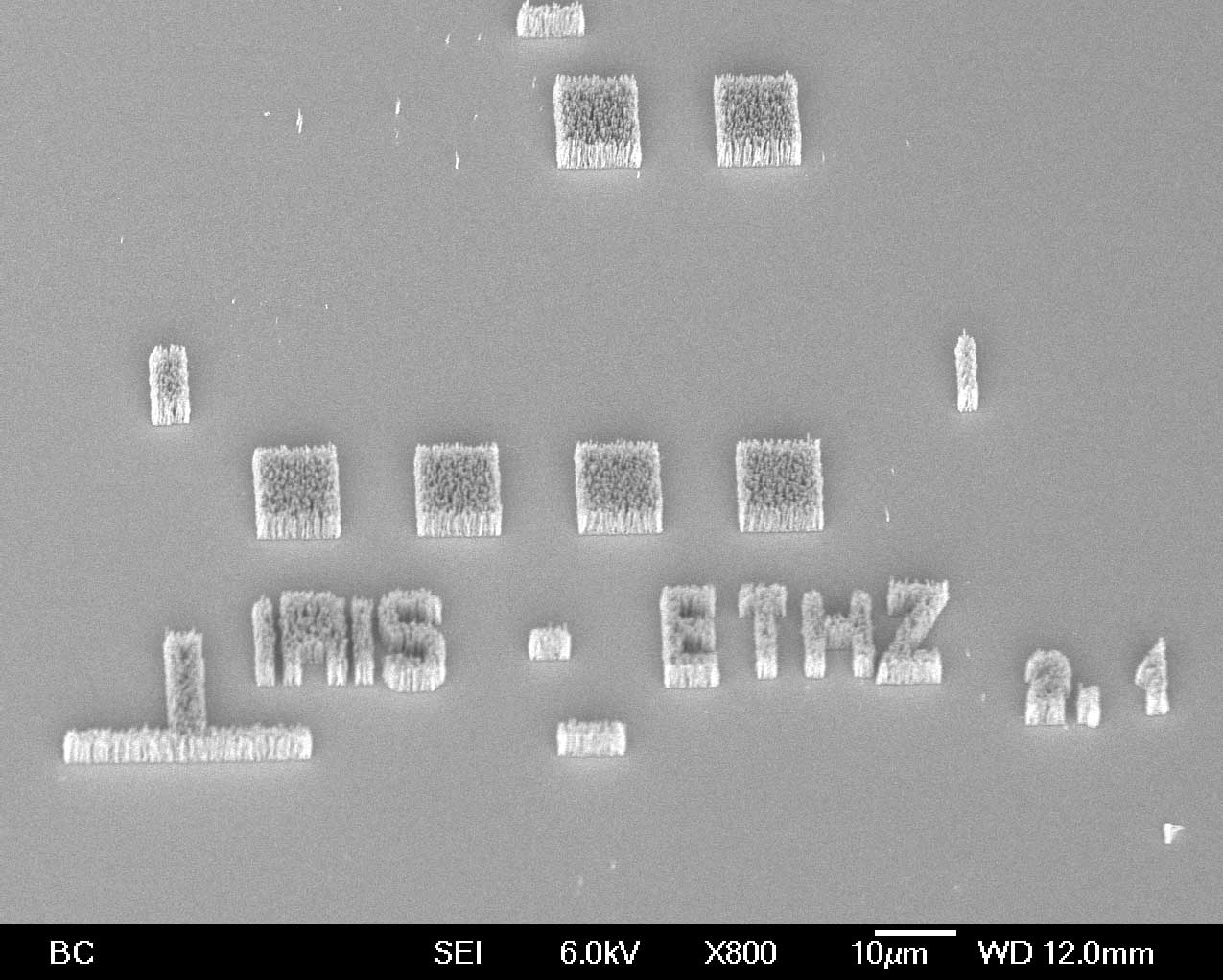

letters shaped by nanotube arrays
Complex and precise patterning to grow aligned carbon nanotubes in various shapes (letters) and defined spacing.

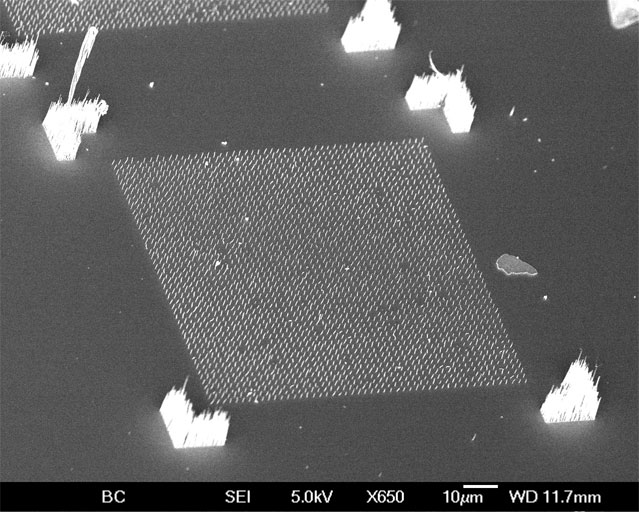

arrays with matrix spacing arrays with matrix spacing arrays with matrix spacing free standing arrays

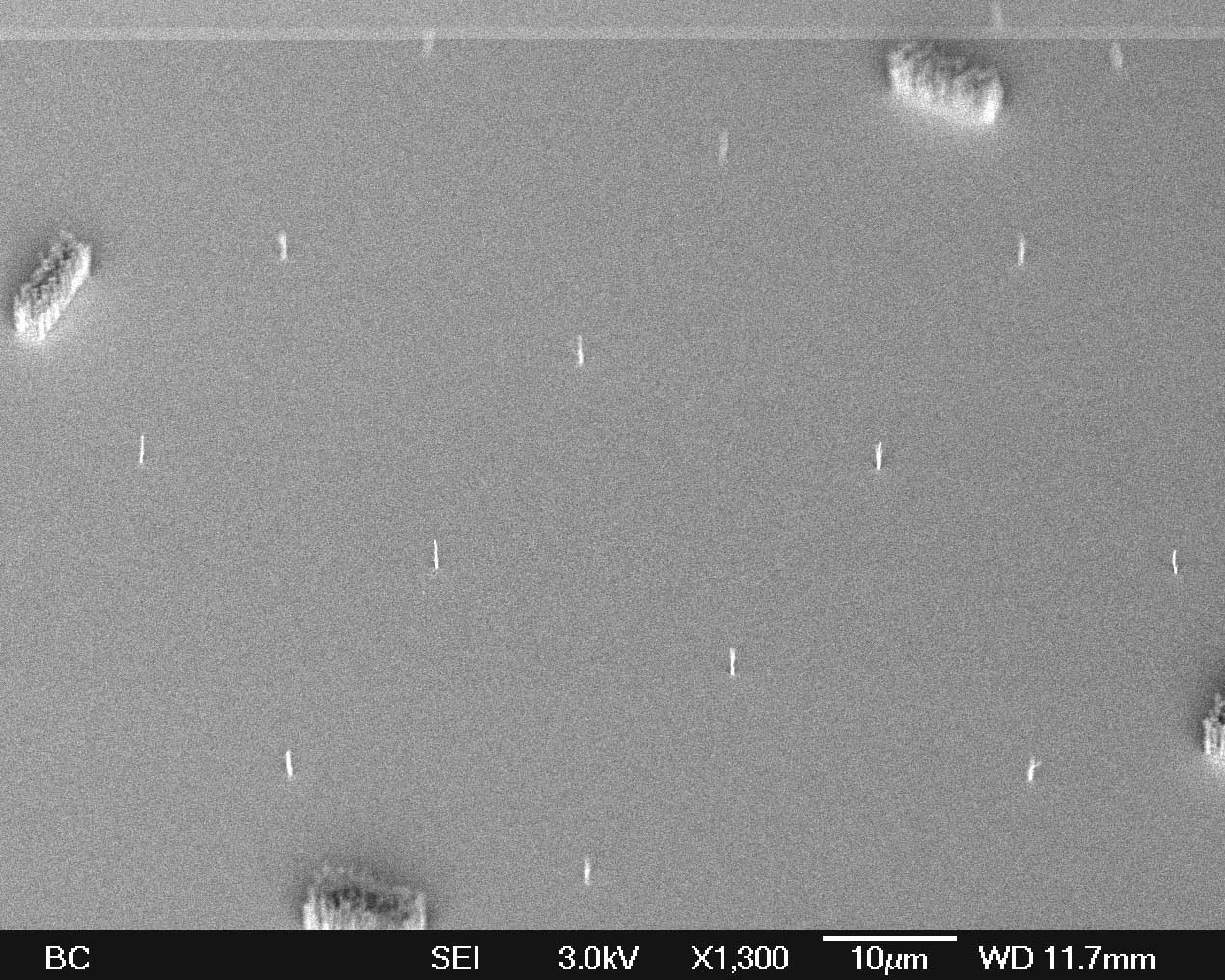

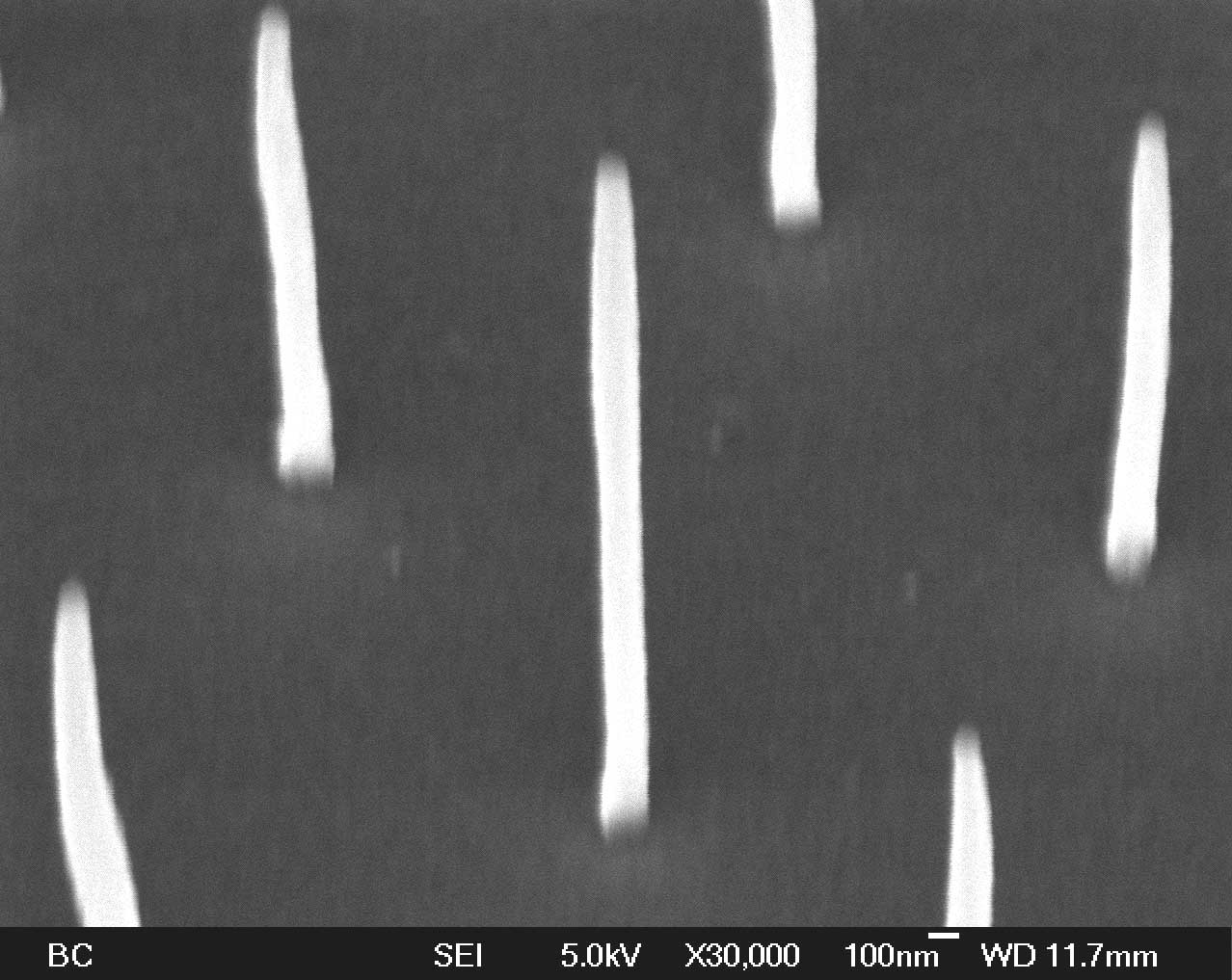

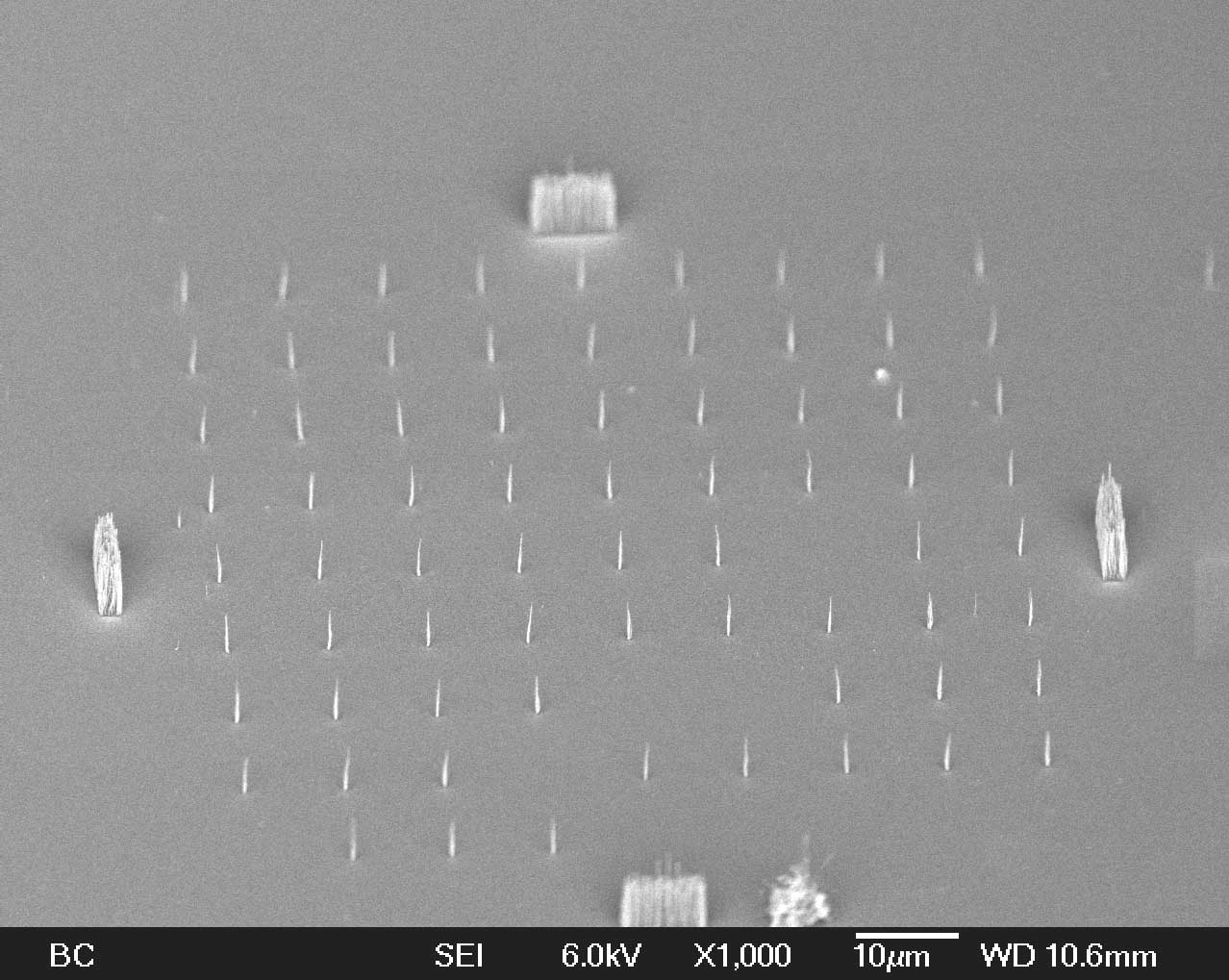

Large area aligned carbon nanotube arrays with square spacing --low, medium and high density.
