| Data Sheets for Aligned Carbon Nanotube Arrays |
|

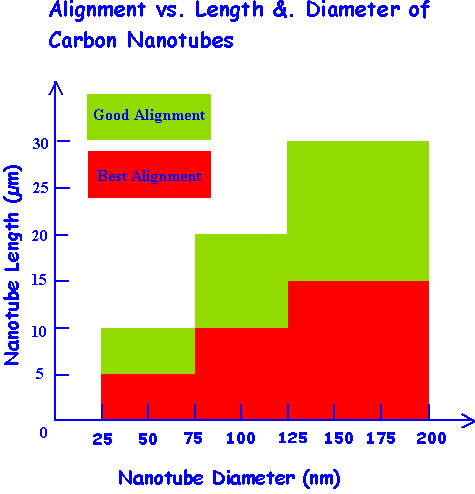

1. A chart of alignment with length and diametr on standard carbon nanotube arrays. |
 |
|
2.Field emission charasteristic of aligned carbon nanotube arrays. |
|
(1) Field emission I- characteristics of standard arrays. |
 |
(2) Long-term field emissin stability of standard arrays at constant voltages.
  |
|
(3) Field emission I-V characteristic from low site density of arrays. |
|
|
Sample |
Length (um) |
Density (/cm2) |
|---|
|
A |
4.0 |
6x106 |
|
B |
5.5 |
5x106 |
|
C |
7.0 |
2x106 |
|
D |
8.5 |
1x106 |
|
E |
10.5 |
1x106 |
|
F |
12.5 |
3x106 |
|
G |
12.5 |
6x106 |
|
H |
8.5 |
4x106 |
|
|
|
The page was created on 08/10/2011 |
|
