Aligned Carbon Nanotube Arrays and Forests
In addition to the custom arrays we synthesize, listed below are stock VANTA Vertically Aligned Carbon Nanotube Arrays made by Thermal CVD (CNT site density: ~1010-1011CNTs/cm2) grown on various substrates. Each forest is grown from an iron/alumina catalyst that is deposited on the substrate. As these are one-of-a-kind items, they are available in single quantities only.
Some of these forests or 'carpets' were produced for our NASA funded effort to develop optical "super black" coatings, and have very low reflectance values in the visible and infrared. Let us know if you have optical absorber applications in mind, and we will guide you to the arrays that have the best properties in the optical or infrared spectrum. If these arrays fit your needs, the nanotube carpets can be shipped to you the same day.
You may email your order, noting the lot number, to sales@nano-lab.com or fax to +(781) 609 2899
Shipping charges are prepaid and added on an invoice
Applicable duties and taxes are paid upon customs clearance

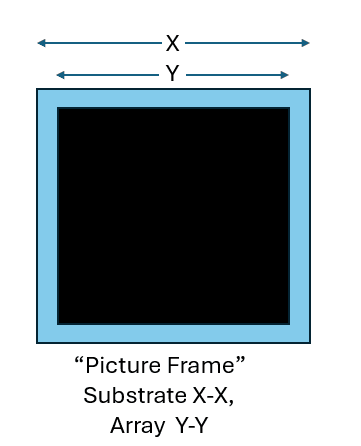

 Lot#   Substrate Material & Size (mm) Lithographic Pattern or Picture Frame CNT Diameter (nm) CNT Length (microns) Price
TM4-101 Si 20 x 20 Pattern:100um square, 100um pitch, Frame: 5mm 10-30 30-40 $750
TM4-094 Si 20 x 20 Pattern: 100um square, 100um pitch, Frame: 5mm 10-30 50 $750
TM4-110 Si 20 x 20 Pattern: 100um square, 100um pitch, Frame: 5mm 10-30 800 Sold
$750
TM4-112-11 Si 20 x 20 Pattern: 100um square, 100um pitch, Frame: 5mm 10-30 50-60 $750
TM4-114 Si 20 x 20 Pattern: 100um square, 100um pitch, Frame: 5mm 10-30 100 $750
TM4-150 Si 25 x 25 Pattern: none, Frame: 2.2mm 10-30 200 $600
NN041013-1 Si 5 x 5 Pattern: none, Frame: none 10 1000 Sold
$400
NN040103-2 Si 5 x 5 Pattern: none, Frame: none 10 1000 Sold
$400
NN062013-S2T3 Si 8 x 8 Pattern: none, Frame: none 10 120 Sold
$400
NN062413 Si 10 x 10 Pattern: none, Frame: none 10 300 $500
NN071613 Si 10 x 10 Pattern: none, Frame: none 10 360 Sold
$500
T5-043-2 Si 12 x 12 Pattern: none, Frame: none 10 100 Sold
$400
NN062613-4B-F Si 10 x 10/20sq Pattern: none, Frame: 5mm 10 10 Sold
$400
NN062613-3G-F Si 10 x 10/20sq Pattern: none, Frame: 5mm 10 45 Sold
$400
NN062613-F Si 10 x 10/20sq Pattern: none, Frame: 5mm 10 15 $400
T5-042-2 Si 18 x 18 Pattern: none, Frame: none 10 10-50 $350
T5-042-1 Si 20 x 18 Pattern: none, Frame: none 10 200 Sold
$450
T5-011-2-F Si 20 x 20/25sq Pattern: none, Frame: 2.5mm 10 20 $450
T5-011-1-F Si 20 x 20/25sq Pattern: none, Frame: 2.5mm 10 20 $450
T5-012-F Si 20 x 20/25sq Pattern: none, Frame: 2.5mm 10 100 $450
T5-016-F Si 20 x 20/25sq Pattern: none, Frame: 2.5mm 10 70 Sold
$450
T4-150-F Si 20 x 20/25sq Pattern: none, Frame: 2.5mm 10 100 Sold
$450
NN0306141F Si 25 x 25 Pattern: none, Frame: none 10 1250 Sold
$500
NN031814-3B Si 25 x 25 Pattern: none, Frame: none 10 700 Sold
$500
NN022814-1C Si 25 x 25 Pattern: none, Frame: none 10 1400 Sold
$500
NN031914-3C Si 25 x 25 Pattern: none, Frame: none 10 2000-4000 Sold
$500
NN031414-3A Si 25 x 25 Pattern: none, Frame: none 10 700 Sold
$500
NN103013 Si 7 x 5 Pattern: none, Frame: none 10 50 $300
NN101013 Si 5 x 4 Pattern: none, Frame: none 1-SWNT 1000 Sold
$500
N1-020-7 Ti 11 x 14 Pattern: none, Frame: none 10-30 10 $400
N1-020-8 Ti 14 x 14 Pattern: none, Frame: none 10-30 10 $450
N1-075-7 Ti 20 x 20 Pattern: none, Frame: none 10-30 10 $500
NAS1-84 Ti 10 x 10 Pattern: none, Frame: none 10 5 $400
NAS1-76 Ti 10 x 10 Pattern: none, Frame: none 10 10 $400
NAS1-43 Ti 10 x 10 Pattern: none, Frame: none 10 5 $400
NAS1-26 Ti 12 x 12 Pattern: none, Frame: none 10 5 $350
NAS1-27 Ti 12 x 12 Pattern: none, Frame: none 10 15 $450
NAS1-22 Ti 12 x 12 Pattern: none, Frame: none 10 5 $450
NAS1-31 Ti 12 x 12 Pattern: none, Frame: none 10 3 Sold
$450
NN091613 304SS 12 x 10 Pattern: none, Frame: none 10 125 $400
NAS1-77-3 304SS 10 x 10 Pattern: none, Frame: none 10 5 Sold
$400
NN3514T2 304SS 25 x 13 Pattern: none, Frame: none 10 70 $400
NN030614SC2 304SS 37 x 20 Pattern: none, Frame: none 10 7 Sold
$500
JS128D-Triangluar Si 2cm x 2cm Pattern: none, Frame: 2.2mm 10 1mm $500
JS127D Si 20 x 20 Pattern: none, Frame: 2.2mm 10 350 Sold
$500
JS129 Si 10 x 10 Pattern: none, Frame: 2.2mm 10 250 $500
O523 Si 20 x 20 Pattern: none, Frame: 2.2mm 10 30 $400
JS127E Si 20 x 20 Pattern: none, Frame: 2.2mm 10 350 Sold
$500
O527 Si 20 x 20 Pattern: none, Frame: 2.2mm 10 30 $400
JS128C Si 25 x 25 Pattern: none, Frame: 2.2mm 10 600 $500
