Ultrasonic Probe Dispersion Equipment
NanoLab has been recommending the use of ultrasonic probes to its customers for the dispersion of nanotubes, nanoparticles and nanowires. We now offer a line of ultrasonicators, which outperform the more common sonic baths in the preparation of well dispersed nanomaterials. NanoLab offers two systems, the QS1 for processing volumes up to 50ml, and the QS4 for preparing dispersions and suspensions up to 1 liter.
Please email your inquiries to info@nano-lab.com or sales@nano-lab.com

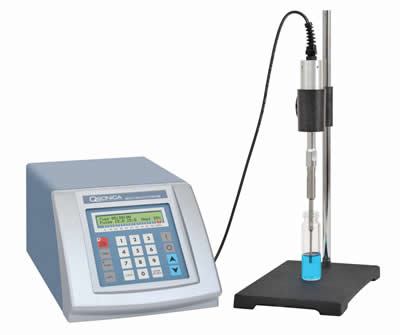

The QS1 system
The QS1 is a low cost, 125W, 20 KHz ultrasonic probe for the dispersion of nanotubes, nanowires, and nanoparticles in small liquid volumes. The unit has a 10 hour adjustable timer, adjustable pulse on/off from 1 second to 1 minute. The sonicator is equipped with a thumb switch, which allows the user to hold the probe and deliver precise pulses of energy, while closely monitoring the sample. In addition, the probe can be mounted in a stand or sound enclosure for continuous processing. The ultrasonic probe system comes with the generator, the transducer, a 6 ft cable, wrenches to attach the horn, and a manual. Select a probe below.
Item code: QS1     Price: $2,860
Titanium Probes
The price above does not include a probe. Probes for the QS1 should be selected for your application. Select a probe for your expected volume, add this item number suffix to the item number.
Tip diameter
inches
Optimal Volume Range
ml
Solvent Suitability Item Number Price
0.125 0.5-15 Any QS1T-1 $265
0.25 5-50 Any QS1T-2 $265

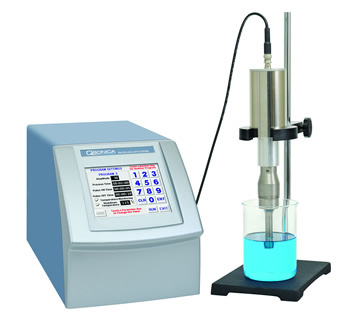

The QS4 system
The QS4 is a 700W, 20kHz ultrasonic probe for the dispersion of nanotubes, nanowires, and nanoparticles in liquids. The unite has 72 hour adjustable timer, adjustable pulse on/off from 1 second to 24 hours. A user can save 10 program sequences, or operate in a manual mode with adjustable pulse length, output amplitude, and time. The unit features a touch screen display, overload protection, self diagnostics, and is self tuning. The QS4 system comes with a 6 ft cord to allow the transducer and probe to be placed in a fume hood or glove box, while the generator remains outside. A pair of wrenches, used to attach the probe to the transducer, are included, along with an instruction manual. Select a probe below.
Item number: QS4     Price: $4,860

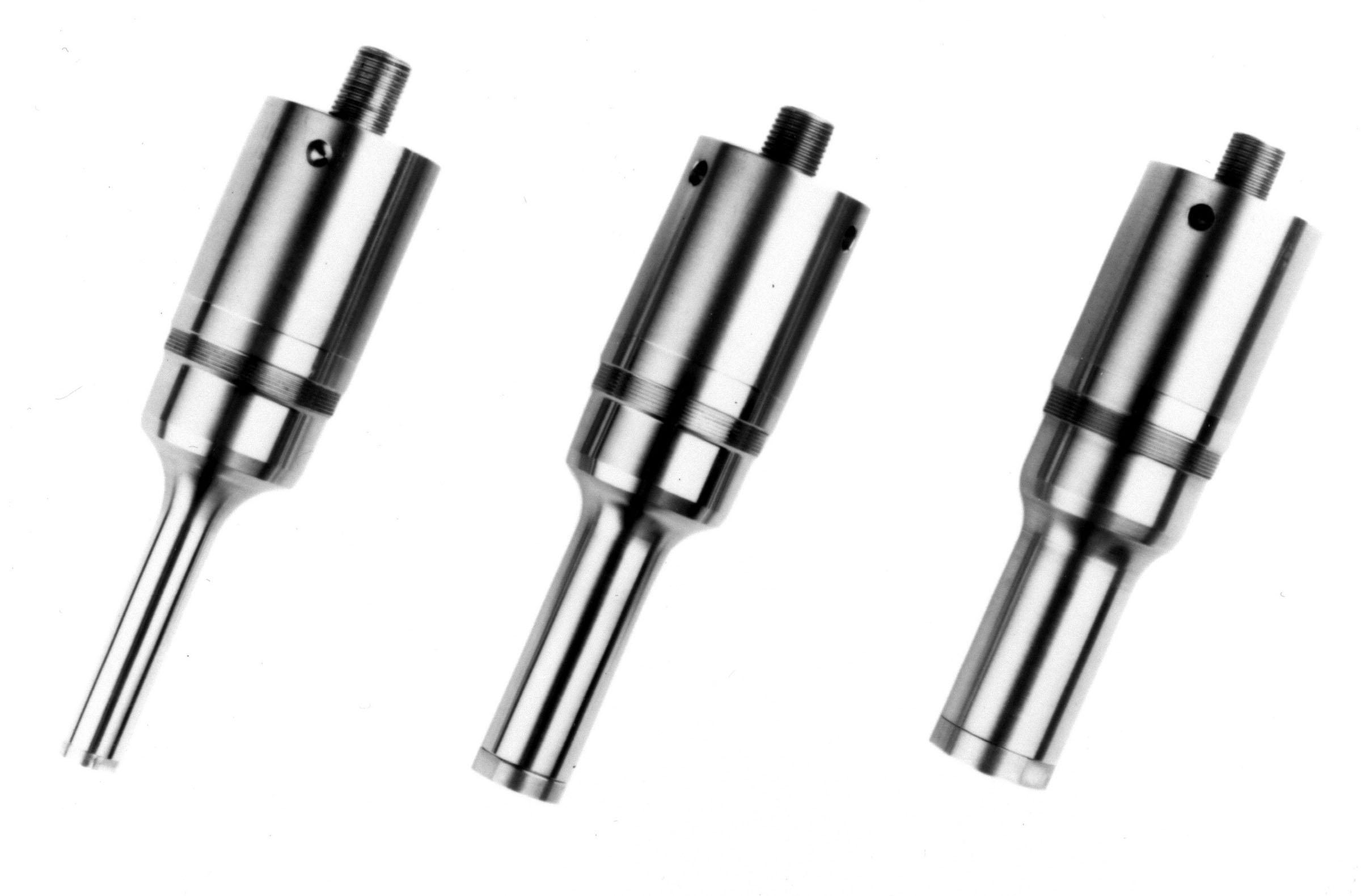

Titanium Probes
The above price is without a probe. Probes for the QS4 should be selected for your application. Select a probe for your expected solvent and volume, and order the selected item number. Solid probes can be used for any standard solvent, including water. The -4R replaceable tip should not be used with water.
Tip Diameter
inches
Optimal Volume Range
ml
Solvent Suitability Item Number Note Price
0.125 0.5-15 Any QS4T-1   $300
0.5 10-250 Non-Aqueous QS4T-4R With Replaceable tip $555
0.5 10-250 Non-Aqueous QS4T-4R1 Replaceable tip $60
0.5 10-250 Any QS4T-4   $555
0.75 20-500 Any QS4T-6   $555
1.0 40-1000 Any QS4T-8   $555
Other specifications:
2 yr warranty by Qsonica - Misonics
Generator dimensions 11x 20x 5.5
Shipping Weight: 37 lbs
Input 120-240Vac, 50-60Hz.
RoHS compliant
Other offerings:

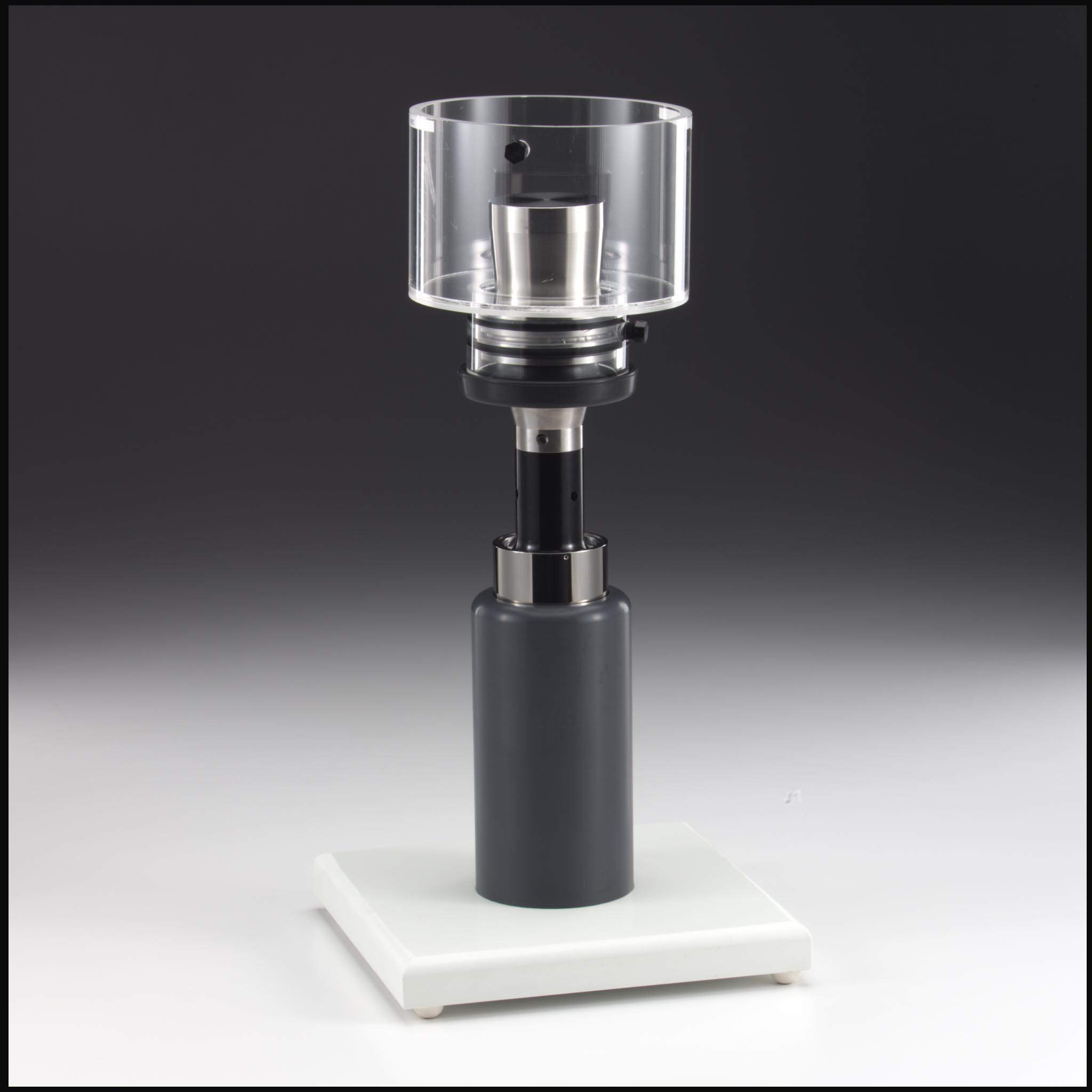

Cup horn probe
The cup horn turns the QS4 system into a high intensity ultrasonic water bath. Cooling water can either be static, or can be flowed through the cup during sonication of your samples. Samples can be placed in sealed tubes or vials, and immersed in the bath. This is useful for samples that are temperature sensitive. The bath construction is acrylic, and has a 5.5 inner diameter. Within is a 2.5 diameter titanium probe tip.
Item code: QS4-CH    Price: $1,700

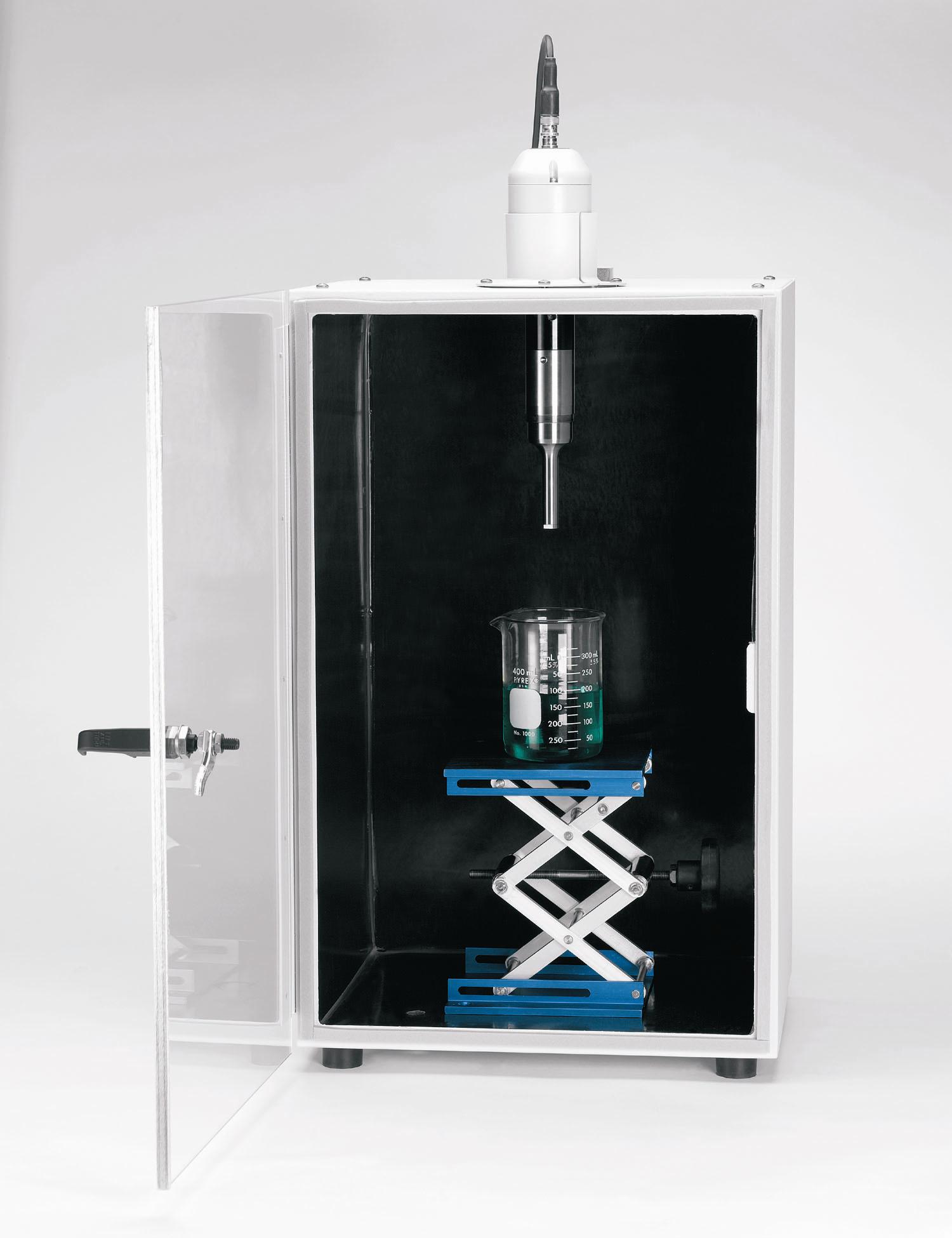

Sound enclosure
We recommend this for the QS4 system, especially if the system will not be placed in a fume hood or other enclosure. The enclosure reduces noise to safe levels, and provides a first line of defense against airborne particulate. The dimensions of the enclosure are 23"x14.5"x12. Shown with jack-stand, not included.
Item code: QSENC-432B     Price: $750
Item code: Jack Stand     Price: $235
